Single Color Profile Printing Machine

• Single Color printing machine, easy & simple to operate, time and labor saving, very fine quality of printing, no rejection, no maintenance. The machine is running worldwide.

• This printing machine can be used for PVC door profiles, veneer board, plastic PVC extruded sections, ceiling panel, wall panel, foam board, ACB, WPC, MDF etc.

• The feeding speed can be adjusted coupled with the printing speed. Machine can run at a very high speed and gives uniform printing.

• The printed work piece’s face is upwarded, so that the print man can be vision the printing quality which controlled the printing quality effectively.

• Easy for replacing the PU roller & printing roller which is just to disassembly the locking bushing for PU & printing roller & replaced, time & labour saving. This machine is designed with easy dismantle structure to make convenient clean and maintenance.

• Safe, convenient & rapid system for ink recycling without any wastage.

• Printing machine is available in various effective printing width and sizes. We can develop machine as per customer specification apart from below given sizes and application.

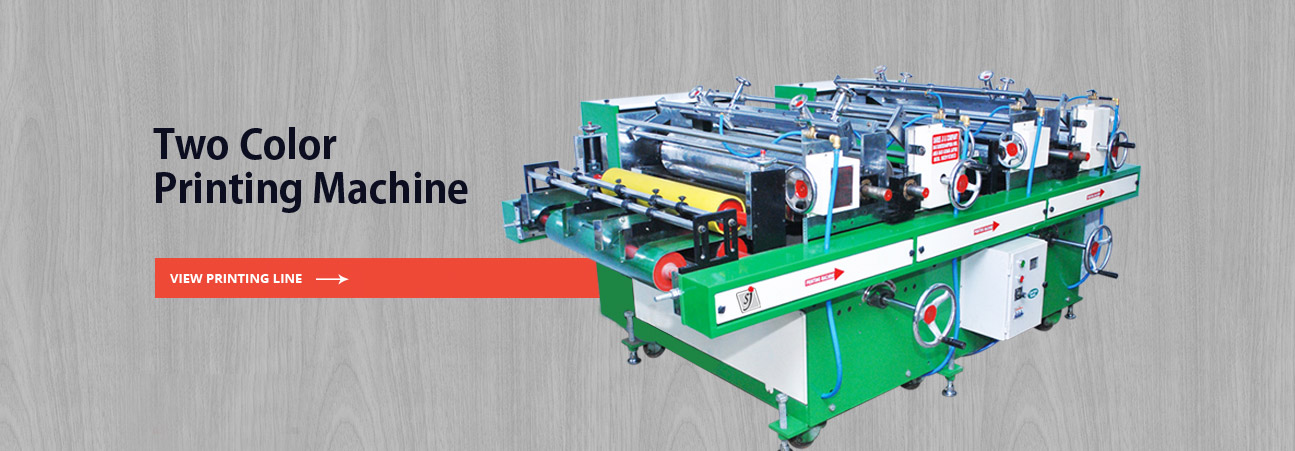

Double Color Profile Printing Machine

• Double Color profile printing machine, fine tuning of design, easy & simple for printing process. System runs at very high speed and gives uniform fine quality of printing. Machine can run in dual way either as single printing machine or double color printing machine.

• The printing machine is suitable for PVC profiles doors, veneer board, plastic PVC extruded sections, Venetian blind, ceiling panel, wall panel, foam board, ACB, WPC etc.

• The feeding speed can be adjusted coupled with the printing speed of double color printing machine.

• Plate height can be adjusted easily and adopt quick-assemble structure for convenient maintenance.

• The printed work piece’s face is upwarded, so that the print man can be vision the printing quality, which controlled the printing quality effectively.

• Easy for replacing the PU roller & printing roller which is just to disassembly the locking bushing for PU & printing roller and replaced, time & labour saving. This machine is designed with easy dismantle structure to make convenient clean and maintenance.

• Safe, convenient & rapid system for ink recycling without any wastage.

• Printing machine is available in various effective printing width and sizes. We can develop machine as per customer specification apart from below given sizes and application.

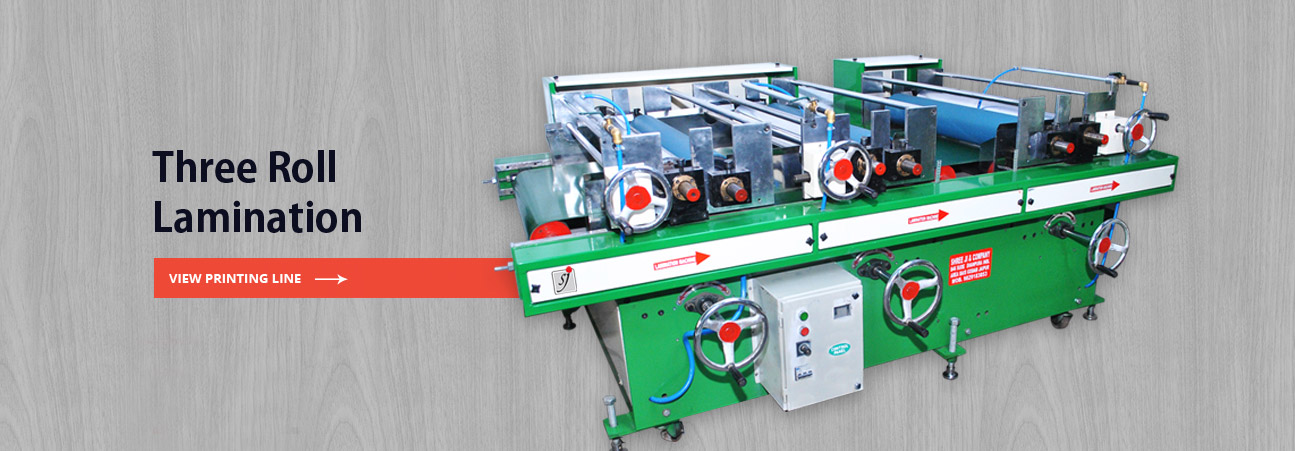

Coating / Lamination Machine

• Especially design double roll Coating / lamination machine, double roll gives perfect and uniform lamination which gives hard, glossy and smooth surface finish. It gives far better glossy smooth surface finish, exquisite, saves valuable UV coating material. Double roll coater lamination quality and surface finish is far better than single roll coating, double roll coating machine is running worldwide. UV Material consume in single roll coating machine is more as compare double roll coating machine.

• Single roll coating / lamination machine is also available if customer wants economical version. UV Material consume in single roll coating machine is more as compare double roll coating machine.

• This machine is suitable for PVC profile doors, veneer board, plastic extruded sections, wall panel, ceiling panel, foam board, wood, floor, ACB, WPC etc.

• The feeding speed can be adjusted couple with the coating / laminated speed.

• Machine equipped with two sets UV lamination roller having abrasive and solvent resistant, application rollers and doctors are controlled independently which enhance the working precision. The coating thickness can be well adjusted.

• Easy for replacing the lamination / coating roll which is just to disassembly the locking bushing and replaced, time & labour saving. This machine is designed with easy dismantle structure to make convenient clean and maintenance.

• Safe, convenient & rapid system for UV material recycling and without wastage.

• Coating / lamination machine is available in various effective width and sizes. We can develop machine as per customer specification apart from below given sizes and application

Washing / Cleaning Machine

• Especially design double roll washing machine, No need of manual wiping and cleaning, adopting the perfect system for washing, by which we can achieved the perfect clean surface. Double roll washing / cleaning machine gives clean free from dust, dirt base for printing. It saves time and manpower.

• There equipped two sets washing roller and employed in dual or single by selected depending upon the product to be clean.

• The washing speed can be adjusted couple and synchronized with the printing speed.

• This machine is suitable for PVC door profiles, veneer board, plastic & extruded sections, wall panel, ceiling panel, foam board, ACB, WPC etc.

• Easy for replacing the set of washing roll which is just to disassembly the locking bushing and replaced, time & labour saving. This machine is designed with easy dismantle structure to make convenient clean and maintenance.

• Safe, convenient & rapid system for washing solvent recollecting.

• Washing / cleaning machine is available in various effective width and sizes. We can develop machine as per customer specification apart from below given sizes and application

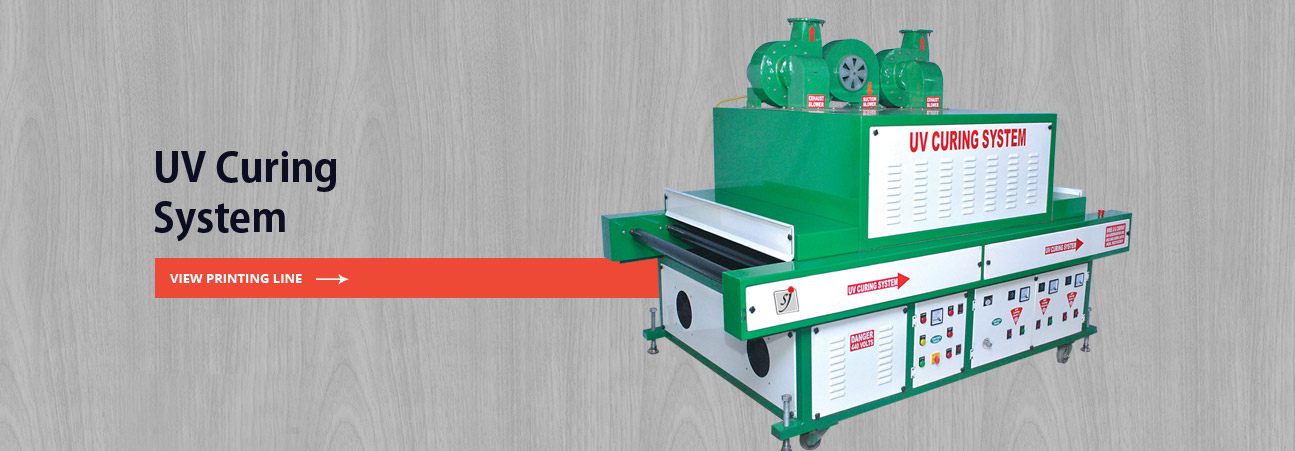

UV Curing Machine

• Instantly UV drying, rapid cure, prevent waiting time and shorten the flow time for coating, fast and convenient method of drying which enhances the hardness of board surface and bring out the coloration.

• UV-ultraviolet ray cure print and sensitive coating on the surface of various materials illuminate through UV light of wavelength 200-400mm required. UV light causing the cross chemical reaction and polymerized in few seconds between light and chemical.

• FEATURES: UV curing can make profile surface high lusture & high hardness Integrated line processing, the printed products directly drying.. System is designed and available in different wattage depending upon product to be cured. Transmission adopts Teflon, steel belt or roller. UV System is technically designed, there is air circle caused by the blower in the chamber, equipped with efficiently cooling provides that will extend the life of UV lamps and can work under high temperature.. UV system is safely designed, UV radiation shield provided at entrance and exit to avoid leaking of UV light.

• METHOD: UV curing system connects after coating machine. After coating the profile or any product directly pass through that cure and dried promptly and the surface becomes smooth & beautiful.

• APPLICATION: Versatile applications suitable for PVC door profile, window, wall board, foam board, veneer board, ceiling panel , wall panel, plastic brick, wood, paper coating, plywood, WPC, ACB sheet, spot, matt and glossy laminate etc.

• UV system is available with one UV lamp, two UV lamps and three UV lamps with or without IR lamps optional.

Plane Belt Conveyor

• The conveyor is used for conveying the work piece of the door profile, board, ACB, WPC etc. The printed, laminated and dried work piece, which passed through the belt conveyor from one process to another process provide system to run at high speed and avoid bending and deformed.

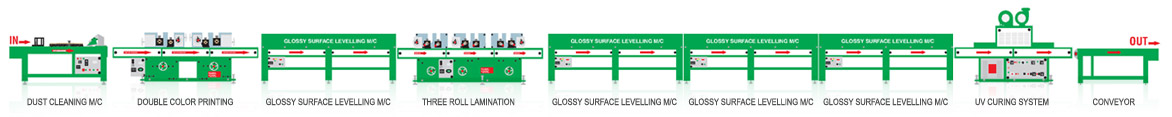

• Conveyor assembled with other machine to form a complete printing line. Conveying belt is resistant to all solvent and anti-dust. Conveying the processed work piece, trouble free transporting, time & labour saving.

• The conveyor speed is controlled by inverter, which make conveying steady and smooth.
