UV Curing System

Profile Printing Line
UV Curing System

Technical Parameters

Working Width in mm - 300, 760, 1000, 1250 mm
Working Speed - 5-30 mtr/min
Profile/Board Thickness - 2-80 mm
Electric Power - Depending on Nos. of UV Lamp
Dimensions of Machine - Depending on Nos. of UV Lamp
UV Lamps Option - 1 UV Lamps, 2 UV Lamps, 3 UV Lamps M/c

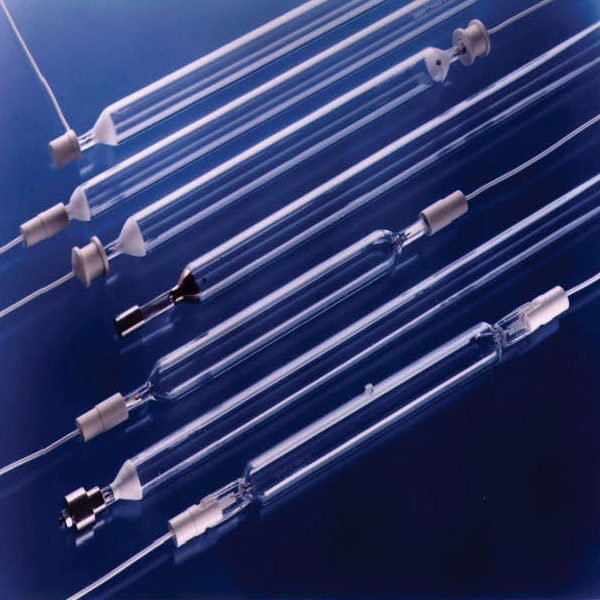

UV Lamp

Technical Parameters

UV Lamp Arc Length - 8", 10", 12", 15", 18", 20", 24", 25", 27", 30", 36", 40", 42", 48", 50", 52
Wattage per Inch WPI - 100, 200, 300, 400, 500 WPI
Availability of Lamps - Ready Stock
End Fittings - All types of Ceramic end design

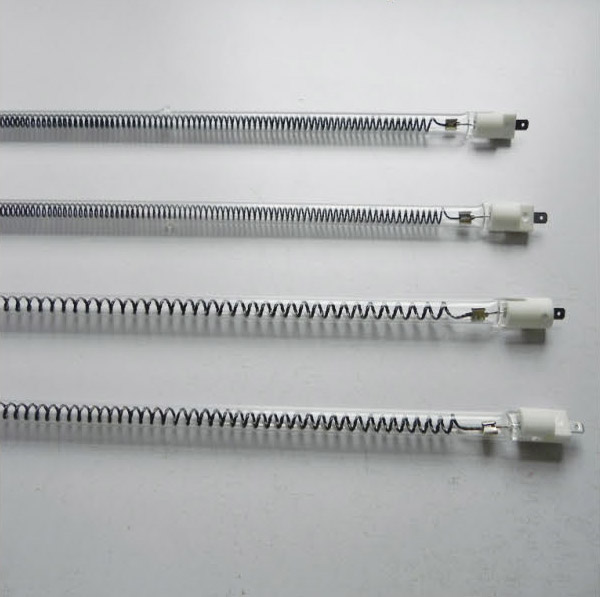

IR Lamp

Technical Parameters

IR Lamp Arc Length - 8", 10", 12", 15", 18", 20", 24", 25", 27", 30", 36", 40", 42", 48", 50", 52
Wattage per Inch WPI - 10 - 200 WPI
Availability of Lamps - Ready Stock
End Fittings - All types
  • Instantly UV drying, rapid cure, prevent waiting time and shorten the flow time for coating, fast and convenient method of drying which enhances the hardness of board surface and bring out the coloration.
  • FEATURES: UV curing can make profile surface high lusture & high hardness Integrated line processing, the printed products directly drying.. System is designed and available in different wattage depending upon product to be cured. Transmission adopts Teflon, steel belt or roller. UV System is technically designed, there is air circle caused by the blower in the chamber, equipped with efficiently cooling provides that will extend the life of UV lamps and can work under high temperature.. UV system is safely designed, UV radiation shield provided at entrance and exit to avoid leaking of UV light.
  • UV-ultraviolet ray cure print and sensitive coating on the surface of various materials illuminate through UV light of wavelength 200-400mm required. UV light causing the cross chemical reaction and polymerized in few seconds between light and chemical.

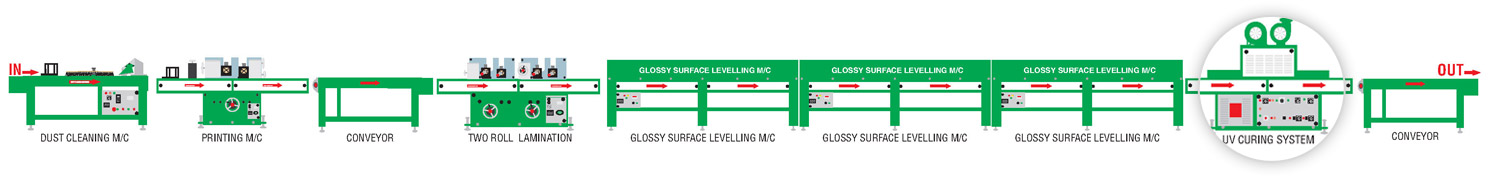

  • METHOD: UV curing system connects after coating machine. After coating the profile or any product directly pass through that cure and dried promptly and the surface becomes smooth & beautiful.
  • APPLICATION: Versatile applications suitable for PVC door profile, window, wall board, foam board, veneer board, ceiling panel , wall panel, plastic brick, wood, paper coating, plywood, WPC, ACB sheet, spot, matt and glossy laminate etc.
  • UV system is available with one UV lamp, two UV lamps and three UV lamps with or without IR lamps optional.
